Dodge XTB30 X 2-15/16 | 112136191

Product Description

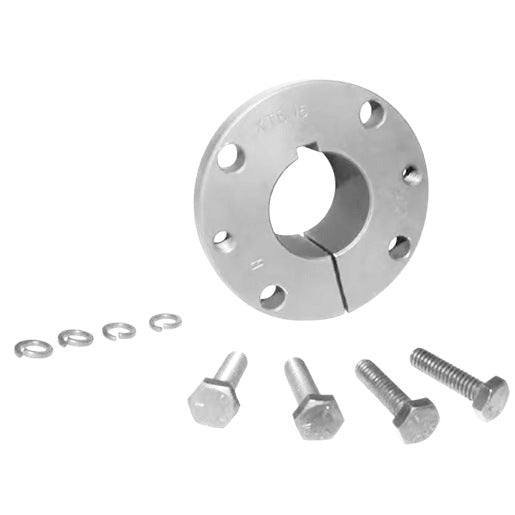

The Dodge XTB30 X 2-15/16 is a durable bushing designed for conveyor applications. This product features a bore diameter of two point nine three seven five inches and is made from either steel or gray cast iron for enhanced reliability.

• Designed for conveyor pulley applications
• Features a two inches per foot taper for easy installation
• Available in steel or gray cast iron

Product Highlights

This bushing ensures smooth operation in mechanical power transmission scenarios, specifically for conveyor systems.

Product Information

Standard Information

• Brand: Dodge
• MPN: XTB30 X 2-15/16

Technical Specifications

• Flange Outside Diameter: five point three one two five inches
• Length Through Bore: two point zero six two five inches
• Bore Diameter: two point nine three seven five inches
• Barrel Diameter: three point eight seven five inches
• Barrel Length: one point three seven five inches
• Flange Thickness: zero point six eight seven five inches
• Number Of Bolt Holes: four
• Installation Torque: forty five point eight foot-pounds
