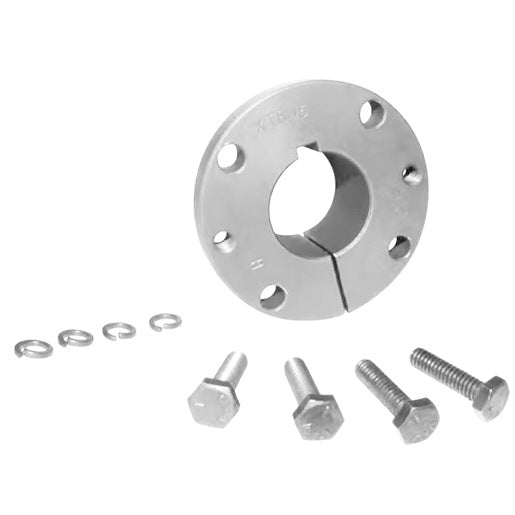

Dodge XTB25 X 1-15/16 | 112127680

Product Description

The Dodge XTB25 X 1-15/16 is a durable bushing designed for mechanical power transmission applications. This product features a bore diameter of one point nine three seven five inches and is suitable for use in conveyor pulley systems. It is built from steel or gray cast iron, providing reliable performance in various industrial settings.

• Compatible with conveyor systems
• Bore diameter of one point nine three seven five inches
• Available in steel or gray cast iron material

Product Highlights

This bushing is suited for easy installation and removal with its two inches per foot taper design. It is ideal for heavy-duty applications, ensuring longevity and dependability.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 112127680

Technical Specifications

• Bore Diameter: One point nine three seven five inches
• Flange Outside Diameter: Four point four three seven five inches
• Length Through Bore: One point eight seven five inches
• Screw Length: Two inches
• Installation Torque: Twenty-nine point two foot-pounds
• Number of Bolt Holes: Four
• Flange Thickness: Zero point six two five inches
• Country of Origin: United States, CN
