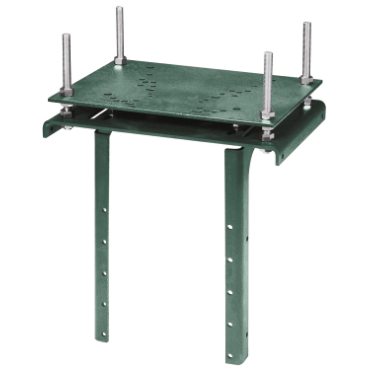

Dodge TA4207MTR MOUNT | Torque Arm II Motor Mount | 4207

Product Description

The Dodge TA4207MTR MOUNT is designed for the Torque Arm II unit 4207. This motor mount secures the motor in place while also serving as the primary belt tensioning device. The product features two angle iron brackets for support and offers adjustable height options.

• Secures motor and acts as a primary belt tensioning device
• Supported by two angle iron brackets
• Equally spaced holes for easy installation

Product Highlights

This motor mount adapts for various applications, including screw conveyor setups. It is compatible with NEMA and IEC frame motors containing inch dimensions.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100949091

Technical Specifications

• Base to O/P Shaft Center Height (Min): 9.34 in
• Base to O/P Shaft Center Height (Max): 21.76 in
• Use With: 4207
• Weight: 88.59 LB
• EAN or UPC: 782475585137
