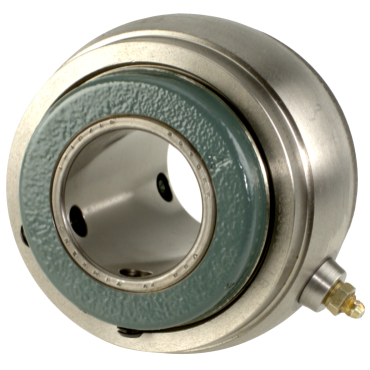

Dodge S1UDI115R S-1 Cartridge Unit Heavy-Duty 3.5 Inch

Product Description

The Dodge S1UDI115R is a S-1 Cartridge Unit designed for heavy-duty applications. It can be mounted in a cylindrical bore for accommodating lineal shaft expansion or in a spherical groove to serve as an anchor bearing.

• Double-interlock cartridge with labyrinth seals
• Relubricatable design for maintenance
• Static self-aligning feature for stability

Product Highlights

This unit provides flexibility with fixed or expansion designs, suitable for various shaft diameters and loads.

Product Information

Standard Information

• Brand: Dodge
• MPN: S1UDI115R

Technical Specifications

• Dynamic Load Rating: 8070 lbf
• Locking Device: Double Setscrew Locking Collars
• Lubrication: Relubricatable
• Length Through Bore: 3.5 inches
• Duty: Heavy-Duty
• Shaft Diameter: 1.9375 inches
• Housing Material: Cast Iron
• Outside Diameter: 4.18 inches
• Collar Outside Diameter: 3 7/16 inches
• Housing Width: 2 7/8 inches
• Maximum RPM: 3050 rpm
• Bearing Type: Tapered Roller Bearing
• Seal Type: Labyrinth Seals
• Measurement Type: Inch
• Unit Type: S-1 Unit
• Overall Width: 3 1/2 inches
• Misalignment Range: ±2° - 7°
• Bearing Design: Fixed or Expansion
• Weight: 8.06 lb
• EAN or UPC: 782475724185
