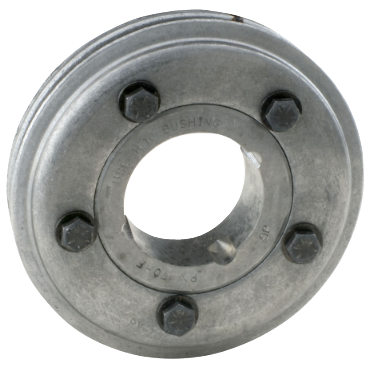

Dodge PX160HFLG Para-Flex Taper-Lock Flange

Product Description

Dodge PX160HFLG is a Para-Flex Taper-Lock flange designed for efficient performance in mechanical applications. The flange provides a robust and reliable connection in drive systems.

• Compatible with sizes PX50 to PX120.
• Utilizes standard taper lock bushings for ease of installation.
• Constructed for durability with a compact design.

Product Highlights

The PX160HFLG offers a reversible design, allowing for flexibility in installation. It complies with UL listing, ensuring its reliability and safety in electrical applications.

Product Information

Standard Information

• Brand: Dodge
• Part Number: PX160HFLG

Technical Specifications

• Input Bore Range: 1 7/16 to 4 7/16
• Bushing Type: Taper-Lock
• Length Through Bore: 4 in
• Bore Diameter Max: 4 7/16 in
• RPM Max: 1560 rpm
• Torque Rating Max: 37800.0 in lb
• Bushing Series: 4040
• Coupling Size: 160
• Bore Diameter Min: 1 7/16 in
• Style: Bushed From Hub Side
• Outside Diameter: 16.6300 in
• Weight: 108.0 LB
• EAN or UPC: 782475009763
