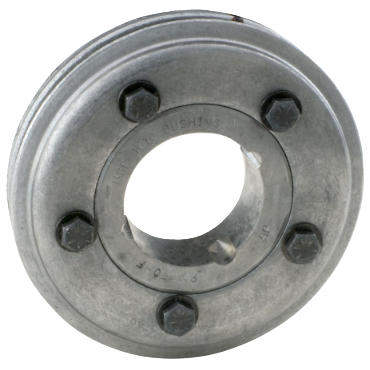

Dodge PX140FFLG Para-Flex Taper-Lock Flange

Product Description

The Dodge PX140FFLG is a Para-Flex Taper-Lock Flange designed for reliable performance in various applications. It features a reversible flange suitable for sizes PX50 to PX120, making it versatile for different setups. The standard taper lock bushing allows for easy installation and removal without complications. Compact in design, it meets operational demands while maintaining efficiency.

• Reversible flanges for multiple size compatibility.
• Standard taper lock bushings simplify installation.
• Compact design enhances functionality.

Product Highlights

This product involves a range of features, including compliance with UL standards, ensuring safety and reliability in use.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100813085

Technical Specifications

• Bore Diameter [Min]: 1 3/16 in
• Style: Bushed From Face Side
• Length Through Bore: 3.5 in
• Coupling Size: PX140
• Torque Rating: 27590 in lb
• Input Bore Range: 1 3/16 to 3 15/16
• Torque Rating [Max]: 27590 in lb
• Bushing Type: Taper-Lock
• Outside Diameter: 14.13 in
• Bushing Series: 3535
• Maximum RPM: 1840 rpm
• Bore Diameter [Max]: 3 15/16 in
• Weight: 63.5 LB
• EAN or UPC: 782475009817
