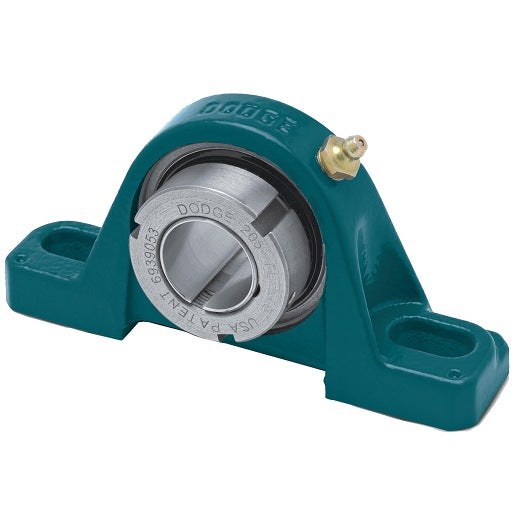

Dodge P2B-GTAH-07 Cast Iron Housing Ball Bearing 2 Bolts Pillow Block

Product Description

The Dodge P2B-GTAH-07 is a cast iron housing ball bearing pillow block designed to offer reliable support in industrial applications. This unit features a two-bolt configuration for easy mounting.

• Material: Cast Iron
• Insert Material: Steel
• Dynamic Load Capacity: 5759 lbf

Product Highlights

Designed for durability, this pillow block is ideal for various mounting needs in manufacturing and machinery.

Product Information

Standard Information

• Part Number: P2B-GTAH-07
• SKU: 101014753

Technical Specifications

• Take-Up Frame Size: LD-20, TS-250
• Bolt to Bolt [Max]: 5.44 in
• No. of Bolts: 2
• Bearing Type: Ball Bearing
• Speed [Max]: 6300 rpm
• Bore Length: 1.71 in
• Housing Material: Cast Iron
• Insert Material: Steel
• Shaft Attachment: Push-Pull Adapter
• Dynamic Load Capacity: 5759 lbf
• Static Load Capacity: 3461 lbf
• Weight: 2.94 lb
• Grease Name: Unirex N2
• Greasable: Yes
• Sensor Ready: Adapter Required
• Base to Center Height: 1.88 in
• Ball Bearing Series: 207 Series
• Bolt to Bolt [Min]: 4.68 in
• Housing Construction: Solid
• Lubrication: Grease
