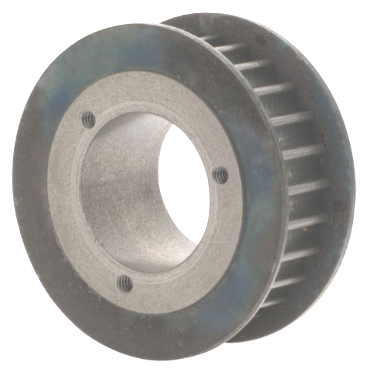

Dodge P248M20JA High Torque Drive Sprocket

Product Description

The Dodge P248M20JA is a high torque drive sprocket designed for various applications. It features an eight millimeter belt pitch, a twenty millimeter belt width, and twenty-four teeth. This sprocket has an outside diameter of two point three five four inches and requires a JA bushing with a bore range from one half inch to one and one quarter inches.

• Applications: Agitators, Mixers, Brick and clay machinery, Compressors
• Features: Compact design, positive drive, no lubrication needed
• Specifications: Corrosion and abrasion-resistant, low maintenance

Product Highlights

This product offers quiet operation and virtually no backlash, making it suitable for machinery that requires precision and reliability.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100946248
• Availability: In Stock

Technical Specifications

• Outside Diameter: 2.354 inches
• Belt Width: 20 mm
• Bushing Series: JA
• No. of Teeth: 24
• Sprocket Width: 1.13 inches
• Pitch Diameter: 2.406 inches
• Bore Type: Taper-Lock and QD Bushed
• Belt Pitch: 8 mm
• Bushing Type: QD
• Bore Range [Max]: 1.25 inches
• Bore Range [Min]: 0.5 inches
• Type: E1F
• Weight: 0.794 LB
• EAN or UPC: 782475266043
