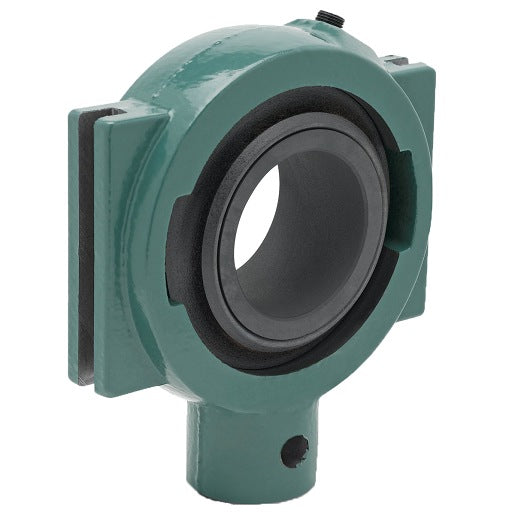

Dodge NSTULT7207 Sleeve Bearing Take-Up Unit

Product Description

The Dodge NSTULT7207 is a sleeve bearing take-up unit designed for various applications, including belt and chain conveyors. Built with a cast iron housing, it ensures durability and reliability in mechanical operations.

• Applications: Ideal for belt and chain conveyors.
• Material: Constructed with cast iron for strength.
• Type: Sleeve bearing is self-lubricating.

Product Highlights

This take-up unit offers a narrow slot design allowing for better alignment and easier installation.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 101942609

Technical Specifications

• Shank Height: 1 5/8 inches
• Between Frame Width: 4 15/16 inches
• Bearing Design: Non-Expansion
• Overall Length: 6.6875 inches
• Seal Type: Unsealed
• Screw Diameter: 1 inch
• Shaft Diameter: 2.4375 inches
• Slot Width: 0.3125 inches
• Locking Device: No Locking Device
• Housing Material: Cast Iron
• Slot Length: 3 3/4 inches
• Take-Up Types: Narrow Slot
• Lubrication: Self-Lubricating
• Overall Height: 5.75 inches
• Weight: 8.25 pounds
• EAN or UPC: 782475017171
