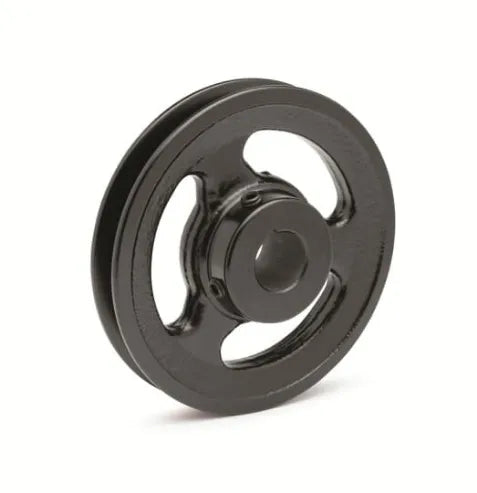

Dodge MA38X3/4 Finished Bore Sheave 3.75 inches

Product Description

The Dodge MA38X3/4 is a finished bore sheave designed for light-duty applications. It features a bore size of three-quarters of an inch and an outer diameter of three point seventy-five inches. This sheave is compatible with belt sizes A, 3L, and 4L, making it versatile for various systems.

• One groove design for effective belt engagement
• Constructed from durable cast iron
• Finished bore size for easy installation

Product Highlights

This finished bore sheave is suitable for a range of industrial applications, providing reliable performance and durability.

Product Information

Standard Information

• Brand: Dodge
• MPN: MA38X3/4

Technical Specifications

• Belt Size: A, 3L, 4L
• Material: Cast Iron
• Finished Bore: 3/4 inch
• Length Through Bore: 1.125 inches
• Outside Diameter: 3.75 inches
• Thread Test: 3.410 inches
• Overall Length: 1.375 inches
• Number of Grooves: 1
• Type: Finished Bore Sheave
• Inch/Metric: Inch
• Weight: 1.65 lbs
• UPC: 775829026097
