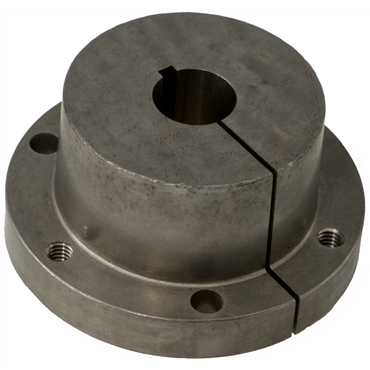

Dodge M33/4 M3 3/4 | QD Bushing

Product Description

The Dodge M33/4 is a QD Bushing designed for use in various mechanical applications. This QD bushing features a bore size of three point seven five inches. It provides reliable performance and is suitable for various operational needs.

• High torque capacity of eighty-five thousand lb/in
• Constructed from durable ductile iron
• Compatible with M series products

Product Highlights

This QD bushing is easy to install and is part of the M series, offering a solid connection for drive components.

Product Information

Standard Information

• Brand: Dodge
• MPN: M33/4

Technical Specifications

• Bore Size: 3.750 in - 3 3/4 in
• Length Through Bore: 6.75 in
• Weight: 48.3 lb
• Flange Thickness: 1 1/4 in
• Material: Ductile Iron
• Torque Capacity: 85000 lb/in
• Wrench Torque: 225 lbf
• Bore Range [Max]: 5.5 in
• Bore Range [Min]: 2 in
• Large Diameter: 6.494 in
• Capscrew Size: 3/4-10 x 6 3/4
• Cap Screws: 4
• Keyway Size: 7/8 x 7/16
• Overall Length: 6.75 in
• Bolt Circle Dia.: 7 7/8 in
• E (Knuckle Width): 5.5 in
