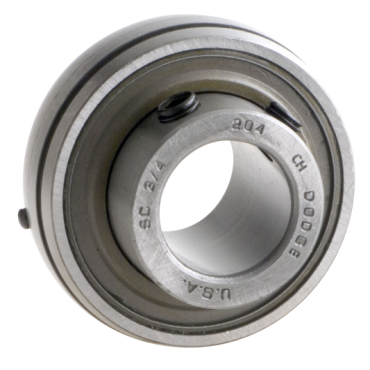

Dodge INS-SC-25M SC Series Normal-Duty Corrosion-Resistant Bearing Insert

Product Description

The Dodge INS-SC-25M is a SC Series normal-duty corrosion-resistant bearing insert with a bore diameter of twenty-five millimeters. It features a robust design suited for various applications such as air handling, food processing, automotive, and more.

• Standard-duty design
• Double sealed for enhanced protection
• Precision-hardened for wear resistance

Product Highlights

This bearing insert is constructed with inner and outer rings that are precision hardened, providing increased wear resistance and quieter operation. It features a DualGuard sealing system that protects against contaminants, ensuring longevity in demanding conditions.

Product Information

Standard Information

• Brand: Dodge
• MPN: INS-SC-25M

Technical Specifications

• Length Through Bore: 30.1 mm
• Outer Ring Width: 15 mm
• Material: Steel
• Overall Width: 30.1 mm
• Duty: Standard-Duty
• Locking Device: Setscrew Locking Collar
• Inch/Metric: Metric Bore
• Rolling Element: Ball Bearing
• Bore Type: Round Bore
• I.D.: 25 mm
• Seal Type: Contact Seals
• Lubrication: Relubricatable
• Bearing Type: Ball Bearing
• Enclosure: Double Sealed
• O.D.: 52 mm
• Weight: 0.42 LB
• EAN or UPC: 782475657681
