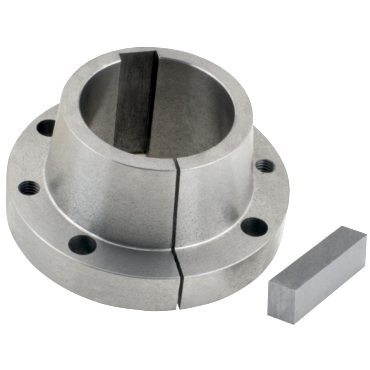

Dodge HE35X23/16KW HE Bushing

Product Description

The Dodge HE35X23/16KW is an HE Bushing designed for various industrial applications. This high-quality bushing accommodates a bore size of two point one eight seven five inches. It is suitable for tapered conveyor pulley systems. The durable construction ensures reliable support and stability in demanding environments.

• Includes four bolt holes for secure mounting.
• Bushing series designation: HE35.
• Length through bore measures three inches.

Product Highlights

The HE35X23/16KW provides strong performance with a flange thickness of seven eighths inch and a wrench torque rating of ninety lbf, making it an effective solution for conveyor systems.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100944053

Technical Specifications

• Bolt Holes: 4
• Flange Thickness: 7/8 in
• Wrench Torque: 90 lbf
• Bushing Series: HE35
• Bolt Size: 09/16/2012
• Bore Size: 2.1875 in
• Bushing Type: HE
• Length Through Bore: 3 in
• Weight: 14.46 LB
• EAN or UPC: 782475272716
