DODGE H8C18S03727 GEAR MOTOR S

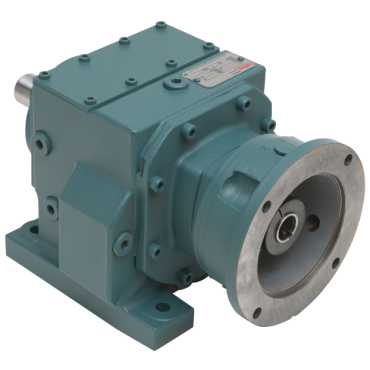

DODGE Dodge H8C18S03727 Quantis ILH C-Face Inline Helical Reducer
DODGE H8C18S03727 GEAR MOTOR S
Dodge H8C18S03727 Quantis ILH C-Face Inline Helical Reducer

Dodge H8C18S03727 Quantis ILH C-Face Inline Helical Reducer

Brand: DODGE
SKU: H8C18S03727
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
LTL Delivery

This product weighs 209 lb each and will be shipped via LTL carrier. A lift gate option will be added free of charge for your convenience.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Dodge H8C18S03727 is a Quantis ILH C-Face Inline Helical Reducer. This reducer features a modular design to allow for versatility in applications.

  • Compact housing design enhances performance.
  • Durable construction using class 30 gray iron.
  • Interchangeable with major brands to simplify installation.

Product Highlights

The helical gear reducer provides high torque ratings suitable for various industrial applications.

Product Information

Standard Information

  • Brand: Dodge
  • MPN: H8C18S03727
Technical Specifications
Box Length
13.82 inches
Input Configuration
C-Face Quilled
Nominal Ratio
37
Bolt Pattern
10.24 x 8.47 inches
Input (Shaft or Bore) Size
1 1/8 inches
Box Height
13.17 inches
No. of Reductions
2
Output Configuration
Parallel Shaft
Output RPM @ 1750 rpm Input
47 rpm
Frame Size
180TC
Lubrication
Mobil 630
Base to Shaft Center Height
7.09 inches
Output (Shaft or Bore) Size
2 1/8 inches
Box Width
13.07 inches
Actual Ratio
37.27
Unit Size
88
Housing Material
Cast Iron
Frame
180TC
Weight
209.0 lb
EAN or UPC
782476024604
