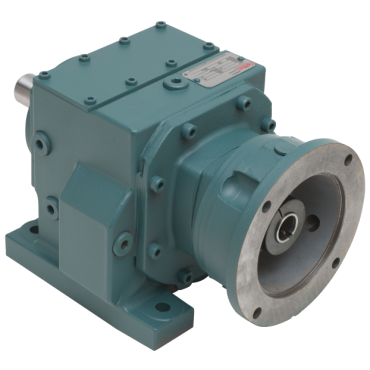

Dodge H4C18S01468 Quantis ILH C-Face Inline Helical Reducer

Product Description

The Dodge H4C18S01468 is a Quantis ILH C-Face Inline Helical Reducer designed for efficiency and durability. This reducer features a modular design that allows for easy integration into various systems. It is suitable for applications requiring a high torque rating while maintaining a compact footprint.

• Modular design for versatile applications
• Higher torque ratings ensure reliable performance
• Constructed from sturdy gray iron for added durability

Product Highlights

This helical reducer is ideal for mechanical systems needing reliable power transmission with minimal space requirements.

Product Information

Standard Information

• Brand: Dodge
• MPN: H4C18S01468

Technical Specifications

• No. of Reductions: 2
• Input Configuration: C-Face Quilled
• Output Configuration: Parallel Shaft
• Input (Shaft or Bore) Size: 1 1/8 in
• Output (Shaft or Bore) Size: 1 1/4 in
• Unit Size: 48
• Frame Size: 180TC
• Housing Material: Cast Iron
