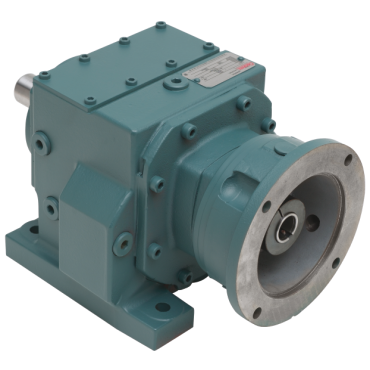

Dodge H4C14S01755 Quantis ILH C-Face Inline Helical Reducer

Product Description

The Dodge H4C14S01755 is a Quantis ILH C-Face Inline Helical Reducer designed for efficient torque transmission. This reducer offers a reliable solution for various industrial applications.

• Modular design for flexibility
• Compact housing for space-saving installation
• Constructed from durable materials for longevity

Product Highlights

This product is ideal for HVAC systems and other machinery that require consistent performance and durability.

Product Information

Standard Information

• Brand: Dodge
• MPN: H4C14S01755

Technical Specifications

• Input (Shaft or Bore) Size: 7/8 in
• Lubrication: Mineral Mobil 600
• Output RPM @ 1750 rpm Input: 100 rpm
• Box Height: 8.73 in
• Actual Ratio: 17.55
• Output Configuration: Inline Solid Shaft
• Box Length: 10.73 in
• Base to Shaft Center Height: 4.53 in
• Unit Size: 48
• Nominal Ratio: 18
• Box Width: 8.66 in
• No. of Reductions: 2
• Input Configuration: C-Face Clamp Collar
• Frame Size: 140TC
• Housing Material: Cast Iron
• Output (Shaft or Bore) Size: 1 1/4 in
• Bolt Pattern: 6.50 x 5.32
• Weight: 80.0 LB
• EAN or UPC: 782476024116
