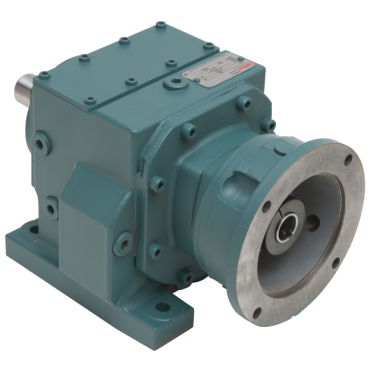

Dodge H3C14S02450 Quantis ILH C-Face Inline Helical Reducer

Dodge H3C14S02450 Quantis ILH C-Face Inline Helical Reducer

Brand: DODGE
SKU: H3C14S02450
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Dodge H3C14S02450 is a high-performance Quantis ILH C-Face Inline Helical Reducer designed for various industrial applications. This reducer offers a 24.5:1 ratio and works efficiently to reduce output speed and increase torque. The modular design allows for easy integration into existing systems.

  • Compact housing for limited space applications
  • Constructed with durable cast iron
  • Interchangeable with major competitor models

Product Highlights

This helical reducer is ideal for machinery requiring reliable performance in a compact design.

Product Information

Standard Information

  • Brand: Dodge
  • MPN: H3C14S02450
Technical Specifications
Input (Shaft or Bore) Size
7/8 in
Input Configuration
C-Face Clamp Collar
Frame Size
140TC
Box Height
6.21 in
Actual Ratio
24.5
Bolt Pattern
5.12 x 4.33
Box Length
9.65 in
No. of Reductions
2
Output Configuration
Inline Solid Shaft
Box Width
6.42 in
Housing Material
Cast Iron
Unit Size
38
Base to Shaft Center Height
3.54 in
Output (Shaft or Bore) Size
1 in
Nominal Ratio
25
Lubrication
Mineral Mobil 600
Output RPM @ 1750 rpm Input
71 rpm
Weight
42.0 LB
EAN or UPC
782476023942
