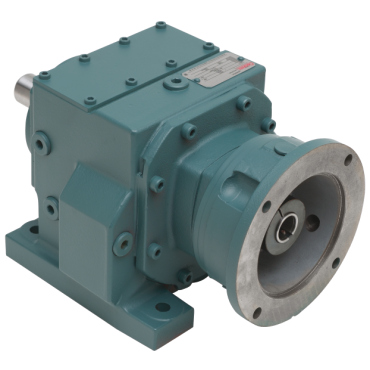

Dodge H3C14S01057 Quantis ILH C-Face Inline Helical Reducer

Product Description

The Dodge H3C14S01057 is a Quantis ILH C-Face Inline Helical Reducer. This unit is designed to provide high torque ratings and a compact housing solution.

• Modular design for easy adaptability.
• Constructed of cast iron for durability.
• Interchangeable with major competitors.

Product Highlights

This gear reducer is suitable for applications requiring efficient power transmission and space-saving design.

Product Information

Standard Information

• Part Number: H3C14S01057
• Brand: Dodge

Technical Specifications

• Frame Size: 140TC
• Unit Size: 38
• Output Configuration: Parallel Shaft
• Input Configuration: C-Face Quilled
• Housing Material: Cast Iron
• Output Shaft Size: 1 inch
• Input Shaft Size: 7/8 inch
• Nominal Ratio: 11
• Actual Ratio: 10.57
• Output RPM @ 1750 RPM Input: 166 RPM
• Weight: 45.0 LB
• Lubrication: Mobil 630
• No. of Reductions: 2
• EAN or UPC: 782476295257
