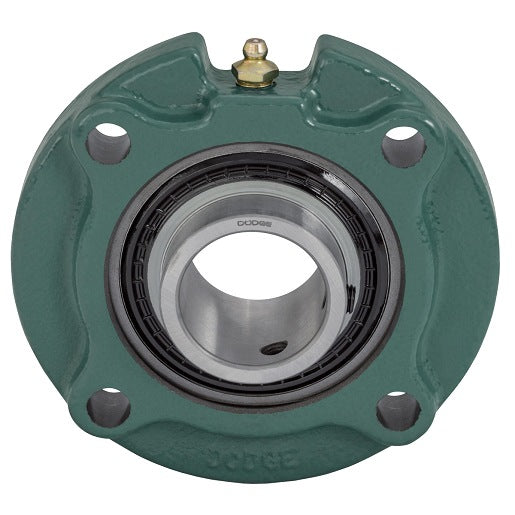

Dodge FC-SCMED-307 Cast Iron Greasable Piloted Flange Unit

Product Description

The Dodge FC-SCMED-307 is a cast iron greasable piloted flange unit designed for reliable performance in various applications. It features a shaft diameter of three point four three eight inches and a fixed expansion capability.

• Static load capacity of sixteen thousand six hundred forty-one pounds
• Dynamic load capacity of twenty-one thousand four hundred fifty-one pounds
• Ball bearing type with setscrew locking device

Product Highlights

This flange unit is suitable for medium-duty applications and includes a four-bolt piloted flange mount. The solid housing construction provides durability in demanding environments.

Product Information

Standard Information

• Brand: Dodge
• Part Number: FC-SCMED-307
• Minimum Order Quantity: 1

Technical Specifications

• Bore Diameter: 3-7/16 inches
• Shaft Diameter: 3.438 inches
• Bore Length: 2.56 inches
• Pilot Diameter: 7.375 inches
• Weight: 26.0 lbs
• Housing Material: Cast Iron
• Greasable: Yes
• Lubrication: Grease (Mobilith SHC PM 220)
