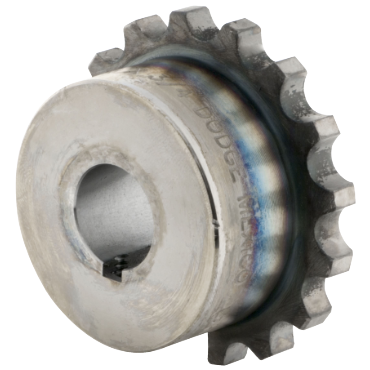

Dodge FB6018X115/16 Finished Bore Roller Chain Coupling Hub

Product Description

The Dodge FB6018X115/16 is a finished bore roller chain coupling hub designed for reliable performance in various mechanical applications. This coupling hub accommodates a 1.938 inch to 1 15/16 inch bore and fits a 60 chain system. It features hardened tooth sprockets and a compact design that assures strength and durability in operation.

• Bored to size for precise fit
• Compatible with ANSI standard double width roller chains
• All metallic components for extended service life

Product Highlights

The Dodge coupling hub offers flexibility in shaft attachment and is suited for a range of industrial settings. Great for applications needing a robust connection.

Product Information

Standard Information

• Brand: Dodge
• Part Number: FB6018X115/16

Technical Specifications

• Chain No.: 60
• Hub Diameter: 3 1/2 inches
• Outside Diameter: 5 inches
• Overall Length of Complete Coupling: 4.23 inches
• Bore Size: 1.938 inches - 1 15/16 inches
• No. of Teeth: 18
• Material: Steel
• Finished Bore: 1 15/16 inches
• Length Through Bore: 1.88 inches
