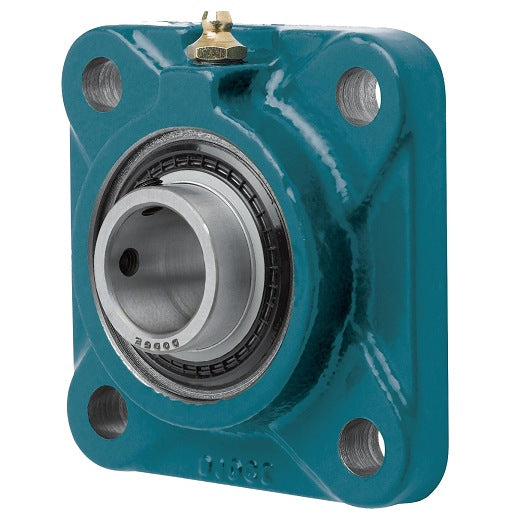

Dodge F4B-SCMED-115 Cast Iron Greasable 4-Bolt Flange Unit

Product Description

The Dodge F4B-SCMED-115 is a cast iron greasable 4-bolt flange unit. This unit is designed to support a shaft diameter of one point nine three eight inches. It features a solid housing construction made of durable cast iron. The flange type is specifically a four-bolt design suited for many mounting applications.

• Solid housing construction
• Designed for easy lubrication
• Dynamic load capacity of nine thousand seven hundred fifty-five pounds

Product Highlights

This flange unit is engineered for reliability and ease of maintenance. Ideal for various industrial applications, it incorporates a grease name of Mobilith SHC PM 220, ensuring optimal operation.

Product Information

Standard Information

• Brand: Dodge
• MPN: F4B-SCMED-115

Technical Specifications

• Housing Construction: Solid
• Housing Material: Cast Iron
• Bolt Diameter: 0.625 inches
• Speed [Max]: 2500 rpm
• Static Load Capacity: 6588 lbf
• Dynamic Load Capacity: 9755 lbf
• Insert Material: Steel
• Greaseable: Yes
