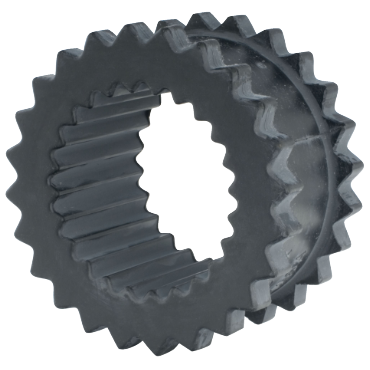

Dodge 9JEELEMENT D-Flex Coupling Insert

Product Description

The Dodge 9JEELEMENT is a D-Flex Coupling Insert designed for effective performance in various applications. This insert features interchangeable components for fast installation. It slides into position for a snug fit without the need for lubrication, ensuring a smooth operation. The design prevents metal-to-metal contact, offering quiet and clean performance.

• Size 9
• Material: EPDM
• Torque Rating Max: 1,800 in lb

Product Highlights

This coupling insert is ideal for systems requiring efficient load distribution and minimal stress buildup.

Product Information

Standard Information

• Brand: Dodge
• MPN: 9JEELEMENT

Technical Specifications

• Color: Black
• Width: 3 inches
• Outside Diameter: 6 inches
• Insert Style: One Piece
• Material: EPDM
• RPM Max: 3,750 rpm
• Torsional Stiffness: 6,875 inch pounds/radian
• HP @ RPM: 50.4 hp @ 1,800 rpm
• Temperature Range: -30 to 275 °F
• Coupling Size: 9
• Sleeve Type: JE
• Weight: 1.83 lb
• EAN or UPC: 782475874262
