Dodge 6SFLANGERSB 6S Flange RSB | D-Flex Coupling S Type

Product Description

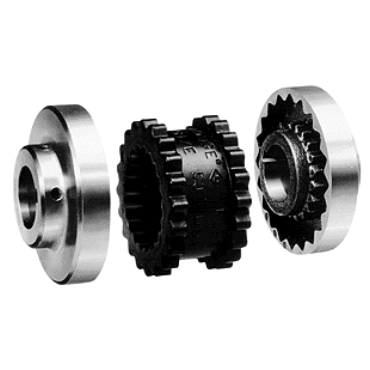

The Dodge 6SFLANGERSB is a 6-inch coupling flange designed for D-Flex Coupling S Type applications. This product ensures quick and easy installation due to its interchangeable components. It slides into position maintaining a snug fit without requiring lubrication. The design avoids metal-to-metal contact, resulting in clean and quiet operation.

• AGMA 9 balanced for reduced vibration
• Two setscrews positioned at sixty-five degrees
• Compatible with bore sizes ranging from 0.5 inches to 1.5 inches

Product Highlights

This coupling flange is ideal for connecting various components securely and efficiently.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 6SFLANGERSB

Technical Specifications

• Coupling Size: 6S
• Length Through Bore: 1.63 inches
• Hub Diameter: 2.50 inches
• Bushing Type: N/A
• Set Screw: Yes
• Hub Length: 0.53 inches
• Bore Range [Min]: 0.5 inches
• Bore Range [Max]: 1.5 inches
• Bore Type: Rough Stock Bore
• Max RPM: 6,000 rpm
• Bore Size: 0.500 inches
• Material: Cast Iron
• Outside Diameter: 4.00 inches
• Weight: 2.6 lb
• EAN or UPC: 782475874569
