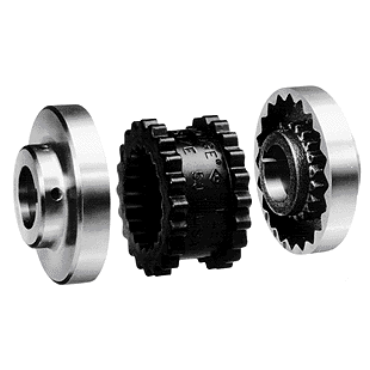

Dodge 6NELEMENT D-Flex Coupling Insert

Product Description

The Dodge 6NELEMENT is a D-Flex Coupling Insert designed to ensure a secure fit for applications requiring effective vibration dampening and torque transfer. This coupling insert is easy to install due to its interchangeable components, which simplify the overall setup process.

• Size 6 Coupling Sleeve
• No lubrication is required
• Compatible with many applications

Product Highlights

The 6NELEMENT provides a snug fit without metal-to-metal contact, reducing wear and ensuring long-lasting operation.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100943221
• Availability: Ready To Ship

Technical Specifications

• Sleeve Type: N
• HP @ RPM: 12 hp @ 1800 rpm
• Torque Rating [Max]: 450 in lb
• Coupling Size: 6
• RPM [Max]: 6,000 rpm
• Torsional Stiffness (Inch Pounds/Radian): 1718
• Width: 1 7/8 in
• Temperature Range [Max]: 200 °F
• Material: Neoprene
• Temperature Range [Min]: -30 °F
• Insert Style: Two Piece
• Outside Diameter: 3.75 in
• Weight: 0.63 lb
• EAN or UPC: 782475874200
