Dodge 5A18.0B18.42517 Taperlock Sheave for A & B Belts

Product Description

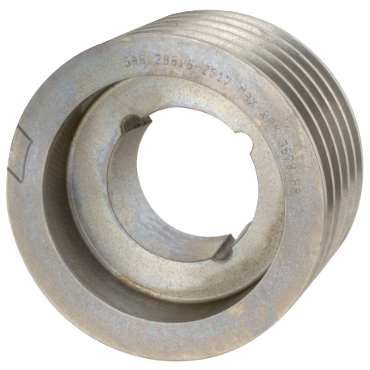

The Dodge 5A18.0B18.42517 is a Taperlock Sheave designed specifically for A and B belts. It features five grooves and has an outside diameter of eighteen and three-fourths inches. This sheave is compatible with both A (4L) and B (5L) belt sizes and requires a 2517 bushing. The bore range accommodates sizes from one-half inch to two and eleven-sixteenths inches.

• Five grooves for optimal performance
• Outside diameter of eighteen and three-fourths inches
• Compatible with A and B belt sizes

Product Highlights

This sheave is designed to isolate shock loads and vibrations while allowing for minor misalignment. Its construction does not require lubrication, making it low maintenance while also operating quietly.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100944568

Technical Specifications

• Bushing Series: 2517
• Length Through Bore: 1.75 inches
• Type: A3
• Bore Range [Min]: 0.5 inches
• Outside Diameter: 18.75 inches
• Inch/Metric: Inch
• Bushing Type: Taperlock
• Belt Size: A, B, 4L, 5L
• Belt Match: 1, 5
• E (Knuckle Width): 0.81 inches
• Overall Length: 4 inches
• M: 1.44 inches
• Bore Range [Max]: 2.6875 inches
• B (5L) Pitch Diameter: 18.4 inches
• Number of Grooves: 5
• Weight: 73.56 lbs
• EAN or UPC: 782475094790
