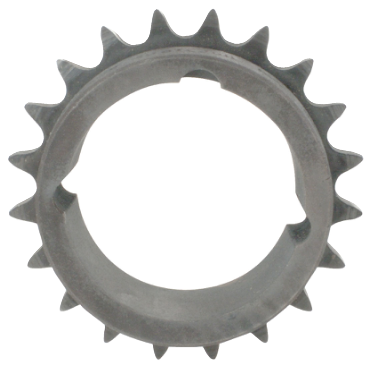

Dodge 50BTL352012 Taper Lock Roller Chain Sprocket

Product Description

The Dodge 50BTL352012 is a taper lock roller chain sprocket designed for durability and efficiency in various industrial applications. This sprocket features a bushing type of taper lock and is primarily made of steel for strength. With a hub diameter of three point five six inches and a pitch diameter of six point nine seven two inches, this sprocket is suitable for chain number fifty.

• Chain pitch of zero point six two five inches
• Maximum bushing bore of two inches
• No. of teeth: thirty-five

Product Highlights

This sprocket provides reliable performance and compatibility with various chain configurations. Its taper lock design ensures secure mounting on the shaft, reducing the risk of slippage or wear.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100947151

Technical Specifications

• Bushing Type: Taper Lock
• Hub Diameter: 3.56 inches
• Material: Steel
• Chain Pitch: 0.625 inches
• Bushing Bore [Min]: 0.5 inches
• Chain No.: 50
• No. of Teeth: 35
• Sprocket Style: B
• Width Across Teeth: 0.343 inches
• Outside Diameter: 7.319 inches
• Hardened Teeth: Without Hardened Teeth
• Bushing Series: 2012
• Pitch Diameter: 6.972 inches
• Bushing Bore [Max]: 2 inches
• Length Through Bore: 1.25 inches
• Weight: 3.9 LB
• EAN or UPC: 782475048816
