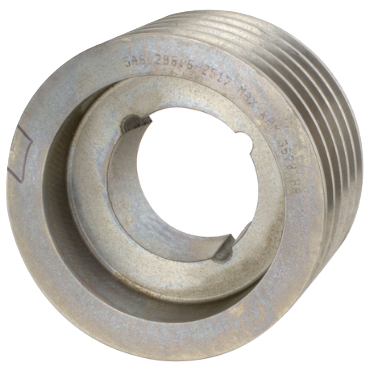

Dodge 5/5V13.23535 Taperlock Sheave for 5V Belts

Product Description

The Dodge Taperlock Sheave, MPN 5/5V13.23535, is designed for use with 5V belts, featuring an outside diameter of thirteen point two inches. This sheave operates with five grooves and is suitable for a bore range from one point one eight seven five inches to three point nine three seven five inches.

• Compatible with 5V belt size
• Made of gray iron casting
• No lubrication required

Product Highlights

This sheave provides efficient performance by isolating shock loads and vibrations. It allows for minor misalignment and offers a quiet operation.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100785491

Technical Specifications

• Belt Size: 5V
• Outside Diameter: 13.20 inches
• Overall Length: 3.75 inches
• Length Through Bore: 3.5 inches
• Bore Range [Min]: 1.1875 inches
• Bore Range [Max]: 3.9375 inches
• No. of Grooves: 5
• Bushing Type: Taperlock
• Bushing Series: 3535
• Weight: 55.65 LB
• EAN or UPC: 782475085293
