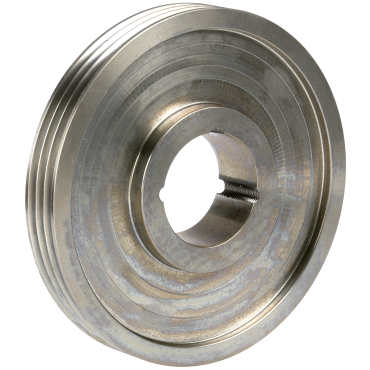

Dodge 3A10.6B11.02517 Taperlock Sheave for A & B Belts

Product Description

The Dodge Taperlock Sheave for A and B belts, model number 3A10.6B11.02517, is designed for reliable performance in various applications. This sheave features three grooves, an outside diameter of eleven point thirty-five inches, and accommodates belt sizes A (4L) and B (5L). It requires a 2517 bushing and supports a bore range from one half inch to two and eleven sixteenth inches.

• Isolates shock loads and vibrations.
• Minor misalignment capability.
• No lubrication needed; designed for quiet operation.

Product Highlights

The Taperlock design simplifies the installation and removal process, while its gray iron casting ensures durability.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100785356

Technical Specifications

• M: 0.75 in
• Overall Length: 2.5 in
• Bore Range [Max]: 2.6875 in
• Belt Match: 1, 3
• B (5L) Pitch Dia.: 11 in
• No. of Grooves: 3
• Type: A2
• Bushing Type: Taperlock
• Length Through Bore: 1.75 in
• Belt Size: A, B, 4L, 5L
• Bore Range [Min]: 0.5 in
• Inch/Metric: Inch
• Outside Dia.: 11.35 in
• Bushing Series: 2517
• Weight: 29.03 LB
• EAN or UPC: 782475094486
