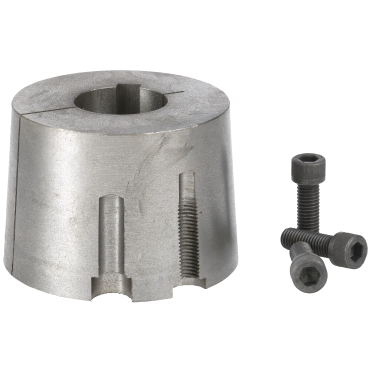

Dodge 3535X315/16KW Taper Lock Bushing

Product Description

The Dodge 3535X315/16KW Taper Lock Bushing is designed for industrial and commercial applications. This bushing has a bore size of three point nine three seven five inches. It ensures secure mounting of equipment for effective performance.

• Easy to install and remove
• Flush mounting prevents protrusions
• Compact design for efficient utilization of space

Product Highlights

Designed for convenience and efficiency, this bushing features a clean and compact design.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100944733

Technical Specifications

• Bore Type: Inch
• Large Diameter: 5 in
• Capscrew Size: 1/2 x 1 1/2
• Wrench Torque: 83.33 lbf
• Material: Sintered Steel
• Keyway Size: 1 x 1/4
• Cap Screws: 3
• Bushing Series: 3535
• Torque Capacity: 3733.33 lbf
• Bore Size: 3.9375 in
• Length Through Bore: 3.5 in
• Bolt Circle Diameter: 4.83 in
• Weight: 7.9 lb
• EAN or UPC: 782475094318
