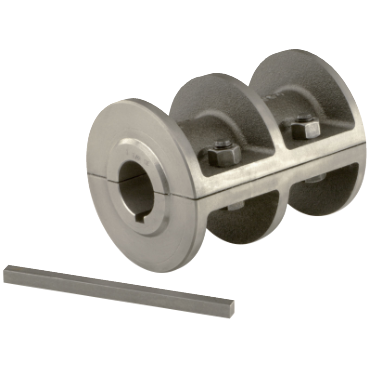

Dodge 315/16RIBBED 3 15/16 Ribbed Rigid Coupling

Product Description

The Dodge Ribbed Rigid Coupling with MPN 315/16RIBBED is designed for reliable clamping on shafts of the same diameter. This two-piece clamp coupling features a bore size of three and fifteen-sixteenths inches and an outer diameter of ten and one-sixteenth inches. It is made from durable cast iron material, ensuring longevity in various applications.

• Axially split for easy installation
• Capable of clamping on shafts of the same diameter
• Constructed from robust cast iron

Product Highlights

This coupling is suitable for many industrial applications, providing a secure connection between two shafts. It includes a keyway for improved stability during operation.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100944026

Technical Specifications

• Keyway: With Keyway
• Length: 15 1/4 inches
• Outer Diameter: 10.0625 inches - 10 1/16 inches
• Material: Cast Iron
• Recessed Screw: No
• Bore B: 3.9375 inches - 3 15/16 inches
• Screw Size: 1
• Coupling Type: Two Piece
• No. of Cap Screws: 6
• Bore A: 3.9375 inches - 3 15/16 inches
• Keyway Size: 1 x 1/2 inches
• Weight: 149.0 pounds
• EAN/UPC: 782475007158
