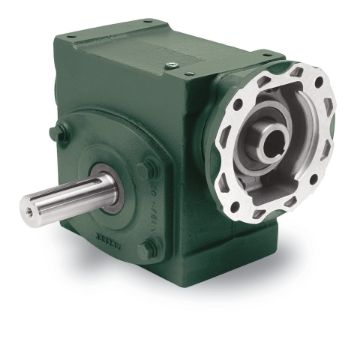

Dodge 30Q20L18 | TIGEAR-2 Right Angle Worm Gear Reducer

Product Description

The Dodge 30Q20L18 is a TIGEAR-2 right angle worm gear reducer designed for efficiency and durability. It features a cast iron housing, ensuring robust performance in various applications. With a center distance of three inches, this gearbox effectively reduces speed and increases torque for machinery.

• Cast iron housing for durability
• Output shaft diameter of 1.375 inches
• Effective lubrication with PAG at standard temperature

Product Highlights

This gearbox is suitable for applications requiring reliable transmission of power. The left output style allows for versatile installation configurations.

Product Information

Standard Information

• Brand: Dodge
• MPN: 30Q20L18

Technical Specifications

• Housing Material: Cast Iron
• Seal Type: Single-Lip Contact
• Output Shaft Diameter: 1.375 inches
• Lubrication: PAG, Standard Temperature
• Overhung Load: 2300 lbf
• Horsepower Output: 3.26 hp
• Output Style: Left
• Frame Size: 180TC
• Center Distance: 3 inches
• Nominal Ratio: 20
• Weight: 89.0 lb
• EAN or UPC: 782475461950
