Dodge 27/16RIBBED 2 7/16 Ribbed Rigid Coupling

Product Description

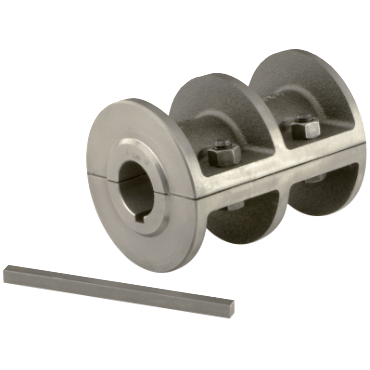

Dodge offers the 27/16RIBBED, a ribbed rigid coupling designed for effective clamping on shafts of the same diameter. This two-piece clamp coupling is constructed from sturdy cast iron for durability and reliability. It features a keyway to ensure proper alignment and secure installation.

• Designed for shafts with an outer diameter of 6 7/16 inches
• Provides a bore size of 2 7/16 inches
• Built with a total length of 9 11/16 inches

Product Highlights

The Dodge 27/16RIBBED coupling is ideal for various mechanical applications, ensuring a tight and stable connection.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100813191

Technical Specifications

• Keyway: With Keyway
• Recessed Screw: No
• Bore A: 2.4375 in - 2 7/16 in
• Bore B: 2.4375 in - 2 7/16 in
• O.D.: 6.4375 in - 6 7/16 in
• Length: 9 11/16 in
• Screw Size: 5/8 in
• Weight: 40.0 LB
• Material: Cast Iron
• Coupling Type: Two Piece
• EAN or UPC: 782475007080
