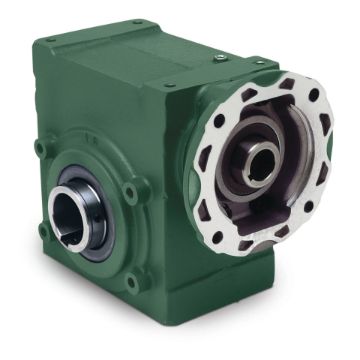

Dodge 23Q40R56 DOD 1.1100 HP Right Angle Gear Reducer

Product Description

The Dodge 23Q40R56 is a right angle gear reducer designed for various industrial applications. This gear reducer operates with a nominal ratio of 40.0, making it suitable for a range of tasks.

• Single-lip contact seal type
• Cast iron housing material
• Ideal for NEMA motor compatibility, 56C frame

Product Highlights

This gear reducer combines durability and efficiency, optimized for reliable performance. It is designed for heavy loads with an overhung load capacity of 1610 pounds. The motor compatibility ensures ease of integration in existing systems.

Product Information

Standard Information

• Manufacturer: Dodge
• Part Number: 23Q40R56 DOD

Technical Specifications

• Case Size: 23
• Input Style: Quill
• Rated Torque Output: 1193 inch-pound
• Horsepower Rating Input: 1.1100 horsepower
• Horsepower Rating Output: 0.8300 horsepower
• Center Distance: 2.3100 inches
• Output Shaft: Right (Solid B)
• Shaft Diameter Output: 1.1250 inches
