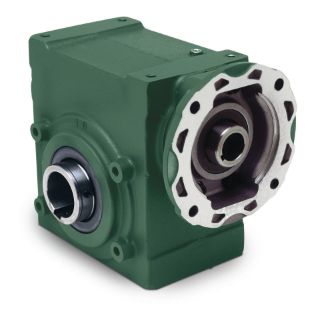

Dodge 23Q15H56 DOD 23Q15H56 TIGEAR-2 REDUCER

Product Description

The Dodge 23Q15H56 is a TIGEAR-2 gear reducer designed for various applications in industrial settings. It provides reliable performance with a nominal ratio of fifteen, making it suitable for tasks that require precision and strength.

• Single-lip contact seal type for enhanced durability.
• Compatible with NEMA motors up to 2.57 horsepower input.
• Cast iron housing for increased toughness and longevity.

Product Highlights

This gear reducer is ideal for applications where space and performance are critical. Its design supports efficient operation in various environments.

Product Information

Standard Information

• Manufacturer: Dodge
• Part #: 23Q15H56 DOD

Technical Specifications

• Case Size: 23
• Bore Length: 6.6200 inches
• Bore Diameter (Output): 1.4380 inches
• Rated Torque Output: 1199 inch-pound
• Overhung Load: 1610 pound-force
• Input Style: Quill
• Housing Material: Cast Iron
• Motor Compatibility: NEMA Motor, 56C Frame
