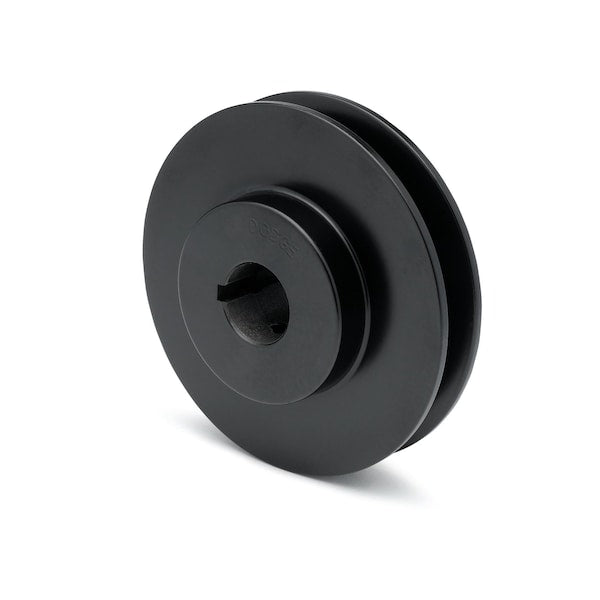

Dodge 1VP50X1-1/8SHEAVE Variable Pitch Pulley - 1VP Series, 1 Groove, A/B Belt Section Size

Product Description

The Dodge 1VP50X1-1/8SHEAVE is a variable pitch pulley designed for efficient power transmission. This component features a one groove design suitable for A and B belt section sizes. The pulley has a bore diameter of one point one two five inches and an overall outside diameter of four point seven five inches. It is made from durable cast iron, ensuring reliability in demanding applications.

• Durable cast iron construction for long-lasting performance.
• Designed for heavier duty service up to twenty-five horsepower.
• Adjustable pitch range to meet various operational requirements.

Product Highlights

This variable pitch pulley allows for flexible speed adjustment and is compatible with various belt types, making it ideal for different mechanical applications.

Product Information

Standard Information

• Brand: Dodge
• MPN: 1VP50X1-1/8SHEAVE

Technical Specifications

• Bore Diameter: 1.1250 inches
• Overall Width: 1.8750 inches
• Outside Diameter: 4.7500 inches
• Number of Grooves: 1
• Length Through Bore: 1.8750 inches
• Maximum Pitch Diameter: 4.4 (4L) inches, 4.1 (3L) inches, 4.7 (5L) inches
• Minimum Pitch Diameter: 3.4 (4L) inches, 3.3 (3L) inches, 3.7 (5L) inches
