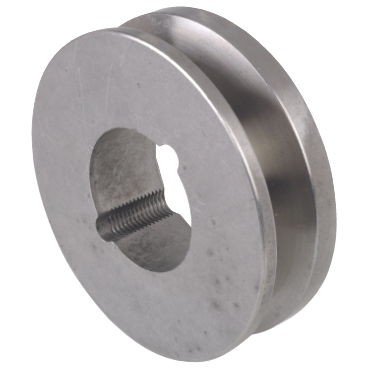

Dodge 1A3.4B3.81610 Taperlock Sheave for A & B Belts

Product Description

The Dodge 1A3.4B3.81610 is a Taperlock sheave designed for A and B belts. This sheave features a groove design that accommodates belt sizes A (4L) and B (5L). The product includes a 1610 bushing and supports a bore range from half an inch to one and eleven-sixteenths inches.

• 1 groove design
• 4.15 inches outside diameter
• Taperlock type for easy installation

Product Highlights

This sheave isolates shock loads and vibration while accommodating minor misalignment. It requires no lubrication and operates quietly.

Product Information

Standard Information

• Brand: Dodge
• MPN: 1A3.4B3.81610

Technical Specifications

• Belt Size: A, B, 4L, 5L
• Type: A1
• Bore Range [Max]: 1.6875 inches
• Bore Range [Min]: 0.5 inches
• Inch/Metric: Inch
• Outside Diameter: 4.15 inches
• Bushing Series: 1610
• Overall Length: 1.16 inches
• Length Through Bore: 1 inch
• M: 0.04 inches
• E (Knuckle Width): 0.11 inches
• Bushing Type: Taperlock
• Belt Match: 1
• B (5L) Pitch Diameter: 3.8 inches
• No. of Grooves: 1
• Weight: 2.08 LB
• EAN or UPC: 782475095551
