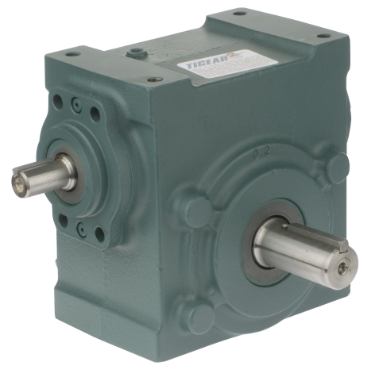

Dodge 13S05R TIGEAR-2 Right Angle Worm Gear Reducer

Product Description

The Dodge 13S05R is a TIGEAR-2 right angle worm gear reducer designed for various applications in industrial settings. Its durable cast iron housing ensures longevity and reliability, making it suitable for general-purpose motor applications. The reducer features a center distance of one point thirty-three inches, providing a compact design for efficient space usage.

• Torque output at one thousand seven hundred fifty RPM: 219 inch pounds
• Horsepower output: 1.22 HP
• Output configuration: Right output

Product Highlights

This gearbox is ideal for operations requiring a robust drive system with a significant reduction ratio. It is capable of driving various machinery while maintaining stability and efficiency.

Product Information

Standard Information

• Brand: Dodge
• MN: 13S05R

Technical Specifications

• Torque Out @ 1750 RPM: 219 in lb
• Center Distance: 1.33 in
• Box Width: 4.1 in
• Nominal Ratio: 5
• Input HP @ RPM: 1.32 HP @ 1750 RPM
• Output Torque @ RPM: 219 in lb @ 1750 RPM
• Output Shaft Diameter: 0.625 in
• Box Length: 4.24 in
• Overhung Load: 650 lbf
• Lubrication: PAG, Standard Temperature
• Housing Material: Cast Iron
• Motor Application: General Purpose
• Box Height: 4.875 in
• Output (Shaft or Bore) Size: 5/8 in
• Horsepower Output: 1.22 HP
• Seal Type: Single-Lip Contact
• Input Style: Separate
• Output RPM @ 1750 RPM Input: 350 RPM
• Input Configuration: Shaft Input
• Output Configuration: Right Output
• Ratio: 5:1
• Input (Shaft or Bore) Size: 1/2 in
• Component Type: Gearbox
• Weight: 36.0 LB
• EAN or UPC: 782475742097
