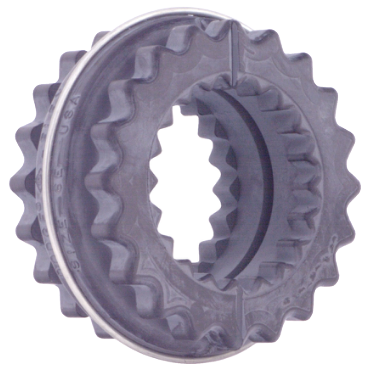

Dodge 12EELEMENT 12E Element D-Flex Coupling Insert

Product Description

The Dodge 12EELEMENT is a size twelve D-Flex coupling insert designed for efficient coupling applications. This insert is made from EPDM material, allowing it to perform within a temperature range of negative thirty degrees Fahrenheit to two hundred seventy-five degrees Fahrenheit.

• Interchangeable components for quick installation
• No lubrication needed for operation
• Eliminates metal-to-metal contact for quieter performance

Product Highlights

The Dodge 12EELEMENT provides a snug fit and features rounded edges for full tooth engagement. It reduces stress buildup, ensuring even load distribution, making it suitable for a variety of industrial applications.

Product Information

Standard Information

• Insert Style: Two Piece
• Material: EPDM
• Coupling Size: 12
• Sleeve Type: E

Technical Specifications

• Temperature Range [Min]: -30 °F
• Temperature Range [Max]: 275 °F
• Torsional Stiffness: 7500 Inch Pounds/Radian
• Outside Diameter: 9.5625 in
• Width: 4 11/16 in
• RPM [Max]: 2800 rpm
• Torque Rating [Max]: 7200 in lb
• Weight: 8.4 lb
