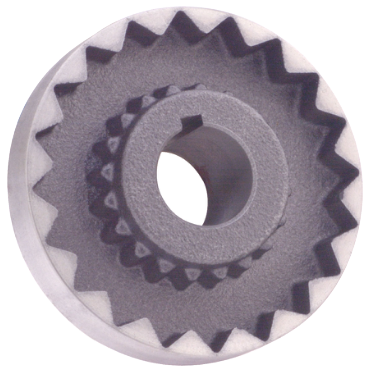

Dodge 10SX1 1/4FLANGE | D-FLEX Coupling

Product Description

The Dodge 10SX1 1/4FLANGE is a D-FLEX coupling designed for seamless integration into your mechanical systems. This coupling flange is specially made for size 10S and features a bore size of one and one-quarter inches.

• Interchangeable components for easy installation.
• No lubrication needed for operation.
• Constructed from durable cast iron for reliability.

Product Highlights

This product allows for quick alignment and provides a snug fit without metal-to-metal contact, ensuring quiet performance in your applications.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 10SX1 1/4FLANGE

Technical Specifications

• Set Screw: Yes
• Material: Cast Iron
• RPM [Max]: 3,600 rpm
• Lock Type: Setscrew
• Coupling Size: 10S
• Bore Type: Finished Bore
• Outside Diameter: 7.5 in
• Bore Size: 1.250 in - 1 1/4 in
• Length Through Bore: 2.72 in
• Hub Length: 13/16 in
• Hub Diameter: 4 3/8 in
• Weight: 13.02 lb
• EAN or UPC: 782475876310
• Keyway Size: 1/4 x 1/8
