Dodge 1070THUBTL2012 1070T HUB TL2012 | Grid-Lign Coupling

Product Description

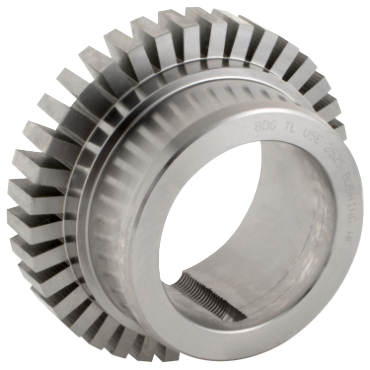

The Dodge 1070THUBTL2012 is a Grid-Lign coupling hub designed for a range of industrial applications. This coupling hub is notable for its sliding action, which accommodates misalignment and end float. The hub is constructed from steel, allowing for a compact design without sacrificing durability.

• Misalignment and end float compensation through sliding grid action
• Constructed from steel for enhanced durability
• Designed for various bore sizes ranging from one half inch to two and one eighth inches

Product Highlights

This product is suitable for use in various machinery and applications requiring reliable coupling solutions.

Product Information

Standard Information

• Brand: Dodge
• Part Number: 100943812

Technical Specifications

• MPN: 1070THUBTL2012
• Bore Diameter [Max]: 2 1/8 in
• Bore Diameter [Min]: 1/2 in
• Horsepower @ RPM: 13 hp @ 100 rpm
• Bushing Series: 2012
• Length Through Bore: 2.125 in
• Input Bore Range: 1/2 to 2 1/8
• Bushing Type: Taper-Lock
• Hub Diameter: 3 7/16 in
• Coupling Size: 1070T
• Torque Rating [Max]: 8000 in lb
• Weight: 3.46 LB
• EAN or UPC: 782475258048
