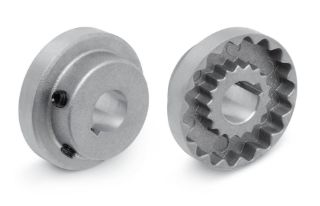

Dodge 022703 DOD D-FLEX 3J X 3/4 FLANGE

Product Description

The Dodge 022703 D-FLEX 3J X 3/4 FLANGE is a reliable elastomeric coupling designed for various industrial applications. It provides effective power transmission and vibration isolation, enhancing the performance of your machinery.

• Compatible with a maximum speed of nine thousand two hundred RPM.
• Rated for a torque of sixty inch-pounds, suitable for demanding environments.
• Designed for close coupled shaft spacing, ensuring minimal space requirements.

Product Highlights

This coupling is ideal for use in electric motors and pumps, providing durability and operational efficiency.

Product Information

Standard Information

• Manufacturer: Dodge
• Part Number: 022703 DOD

Technical Specifications

• Bore Diameter: 0.7500 inches
• Bore Length: 0.8100 inches
• Rated Torque: 60.0000 inch-pounds
• Maximum Speed: 9200 RPM
• Coupling Type: Elastomeric
• Flange Material: Aluminum
• Axial Misalignment: 0.0600 inches
• Angular Misalignment: 1.0000 degrees
