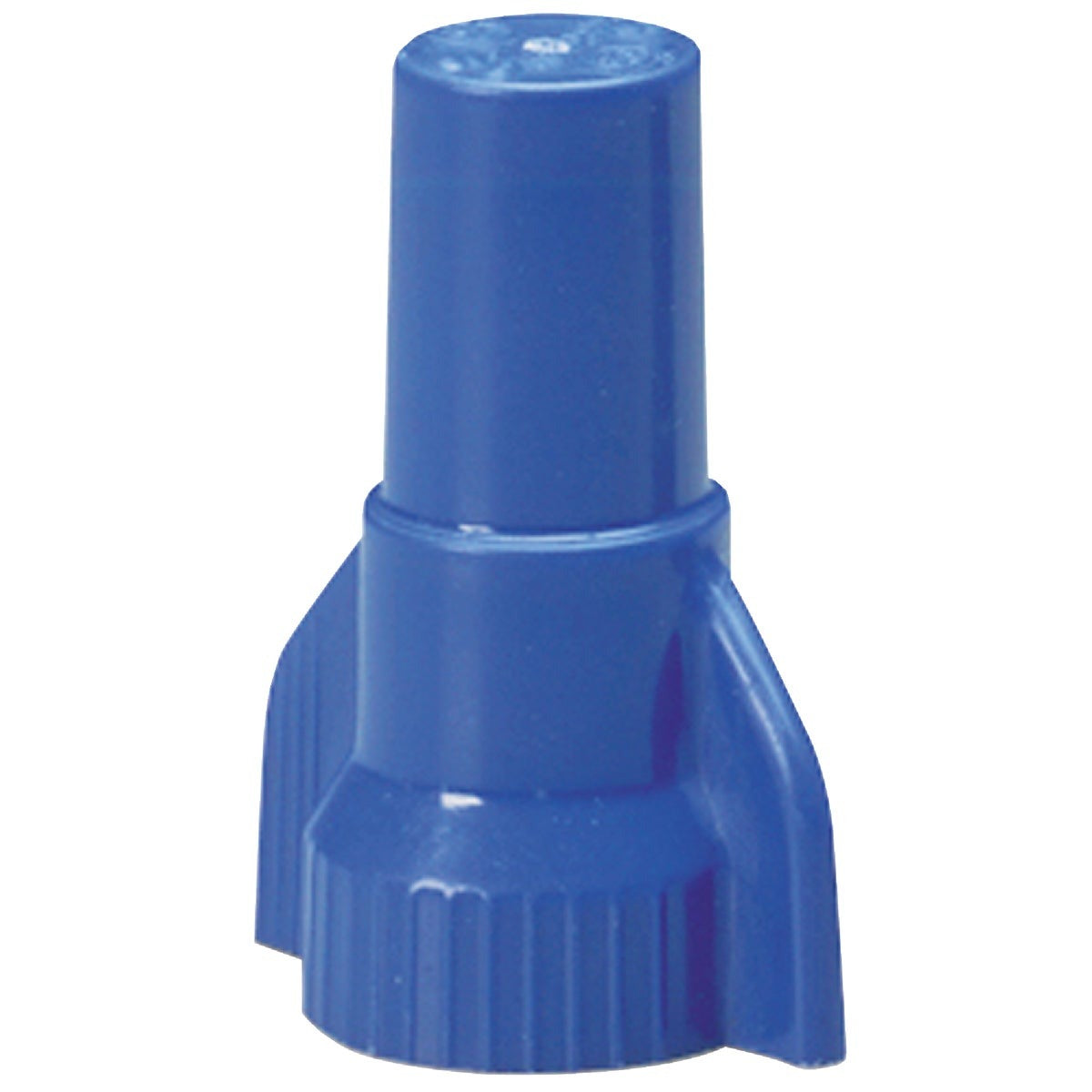

Do It Best 554634 Large Wing Wire Connector 600V

Product Description

The DO IT BEST 554634 is a large wing-type wire connector designed for making quick, secure electrical splices between copper conductors. The expandable square wire spring inside the shell creates a vibration-resistant connection that maintains positive continuity over time. The thermoplastic shell is color-coded and features a deep skirt design that shields bare wire ends from exposure and provides flash-over protection. Rated at 600 volts, this connector meets Federal specification W-5-610d and carries UL 486C listing and CSA certification. It is sold individually and suits both residential and light commercial wiring work.

This connector is suited for splicing copper to copper conductors in junction boxes, outlet boxes, and panel enclosures. The wing-type design allows for fast hand-tightening without tools, making it a practical choice for electricians working through rough-in or finish wiring stages. The tough thermoplastic shell handles environmental extremes, making it appropriate for conditioned spaces as well as unconditioned utility areas where temperature variation is a factor.

Key Features

• Wing-type design allows quick, tool-free hand tightening for fast splicing
• Expandable square wire spring provides a vibration-resistant, positive-continuity connection
• Deep skirt thermoplastic shell prevents bare wire exposure and reduces flash-over risk
• Color-coded high dielectric shell for easy gauge identification at a glance
• Rated 600 volts for standard branch circuit wiring applications
• Compliant with UL 486C, CSA, and Federal specification W-5-610d

Compatibility

Designed for copper to copper conductor splicing in standard residential and light commercial wiring applications where a UL 486C listed wing connector is required.

Installation Notes

Wing wire connectors are installed by licensed electricians in accordance with the National Electrical Code (NEC). Always de-energize the circuit at the breaker and verify absence of voltage with a meter before making or disturbing any splice. Strip conductors to the connector manufacturer's recommended strip length, twist conductors together if required by the connector style, then seat the connector firmly by hand until snug. Do not over-tighten to the point of cracking the thermoplastic shell.
