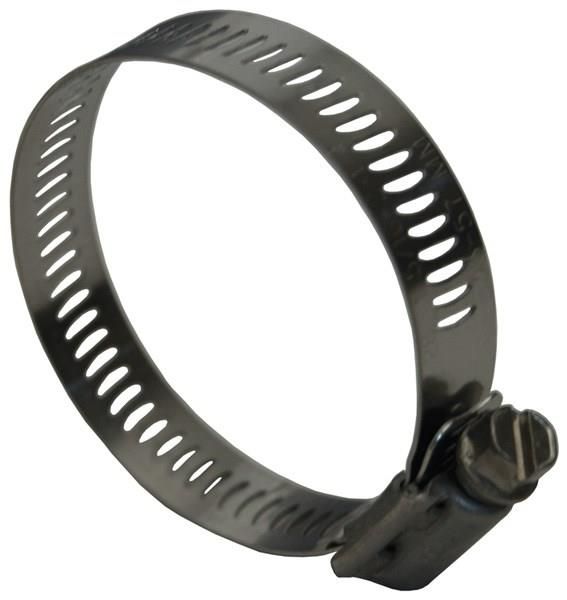

Dixon Valve HSS40 Worm Gear Clamp 3 inch

Product Description

The DIXON VALVE HSS40 worm gear clamp features a four-piece construction with a 5/16" slotted hex head screw. Made from SAE 300-series stainless steel, the band, housing, and screw meet SAEJ1508 standards, superseding Mil Spec WW-C-440B. It is designed for a maximum torque of 50 in. lbs.

• Four-piece construction
• 5/16" slotted hex head screw
• SAE 300-Series stainless steel band, housing and screw

Product Highlights

The DIXON VALVE HSS40 worm gear clamp is durable and meets industry standards.

Product Information

Standard Information

• Brand: DIXON VALVE
• Manufacturer Part Number: HSS40

Technical Specifications

• Material: SAE 300 Series Stainless Steel
• Component Material: Stainless Steel screw
• Style: Style HSS
• Width: 1/2"
• Torque: 50 in. lbs.
• Hose OD To: 3"
• Hose OD From: 2-4/64"
• Series: Style HSS
• Clamp Width: 0.5
• Minimum Clamp I.D.: 2.0625
• Maximum Clamp I.D.: 3
• MPN: HSS40
• Product: Worm Gear Clamps
• Component: Stainless Steel Screw
• Specifications: Meets SAEJ1508 which supersedes Mil Spec WW-C-440B.
