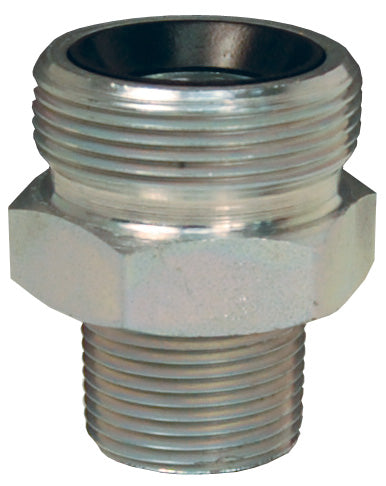

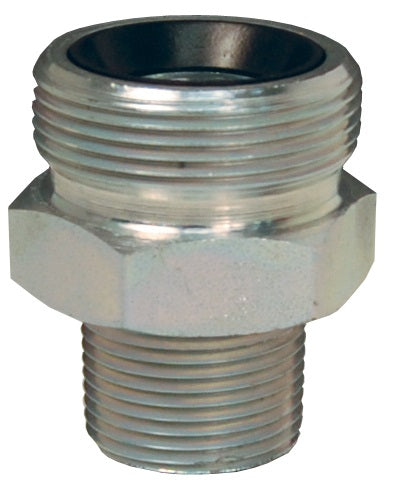

Dixon Valve GM8 Boss Ground Joint Male Spud

Product Description

The Dixon Valve GM8 is a Boss ground joint male spud, suitable for various applications including steam, air, water, fluid petroleum, chemicals, and liquid petroleum gas. This product functions effectively with connections rated up to one inch inner diameter. The spud is designed to pair with Boss Ground Joint fittings, ensuring strong connections through a simple wing nut rotation.

• 3/4 Male NPT x Wing Nut Thread end configuration.
• Constructed from durable plated steel.
• Offers both mechanical and pressure seal when connected.

Product Highlights

The GM8 spud provides reliable connections for multiple fluid types and conditions, enhancing versatility in trade applications.

Product Information

Standard Information

• Manufacturer: Dixon Valve & Coupling
• Manufacturer Model #: GM8

Technical Specifications

• Material: Plated Steel
• Thread: NPT
• Thread Size: 3/4
• Seat Material: Polymer
• Shape: Straight
• Ends Configuration: 3/4 inch Male NPT, 3/4 inch GJ Wing Nut Thread
• Seal Material(s): Copper
• Thread size (metric): 20mm
• Weight: 0.92 lb
• Recommended for steam service up to: 450°F (232°C)
