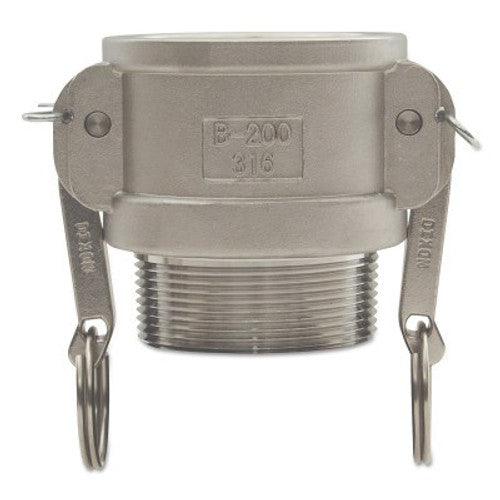

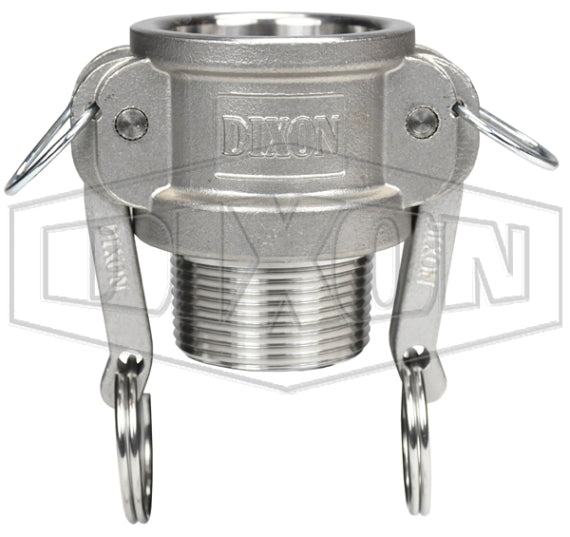

DIXON VALVE G125-B-SS Global Type B Coupler

Product Description

The DIXON VALVE G125-B-SS is a Global Type B cam and groove coupler made for fluid transfer applications. This coupler is made of 316 stainless steel, providing strength and durability. It has a male NPT thread and meets the A-A-59326D standards for interchangeability. To connect, slide the adapter into the coupler and press the cam levers down. Disconnection is as simple as lifting the cam arms and removing the adapter.

• Body material: 316 stainless steel
• Connection type: Female/Male
• Seal material: Nitrile rubber

Product Highlights

This coupler is ideal for transferring fluids in various settings. Its stainless steel construction ensures resistance to corrosion and has a maximum operating pressure of 250 PSI.

Product Information

Standard Information

• Product Type: Global Cam & Groove Type B Couplers
• Body Size: 1-1/4 inches

Technical Specifications

• Connection Type: Female/Male
• Female Quick: 1-1/4 inches
• Male Thread: 1-1/4 inches (NPT)
• Maximum Operating Pressure: 250 PSI
• Weight: 1.14 lb
• Seal: Nitrile rubber
• Material: 316 investment cast stainless steel
