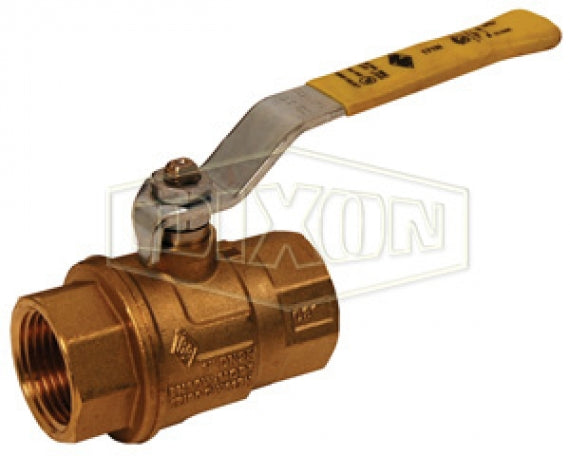

Dixon Valve FBV75 Brass Ball Valve

Product Description

The Dixon Valve FBV75 is a brass ball valve suitable for controlling the flow of air, water, oil, and gas in hose or pipe lines. This valve features a forged brass body for durability, PTFE seats, seals, and thrust washers for reliable sealing, and a chrome-plated brass ball for smooth operation. The handle is constructed of plated steel for added strength. This valve has female NPT threads on both ends.

• Forged brass body
• PTFE seats, seals and thrust washers
• Chrome-plated brass ball and plated steel handle

Product Highlights

The FBV75 is durable and efficient for various fluid control applications.

Product Information

Standard Information

• Brand: Dixon
• Part Number: FBV75

Technical Specifications

• Material: Brass
• Size: Three-Quarter Inch
• Weight: 0.79 lb
• Thread: Female NPT x Female NPT
• Seat Material: PTFE
• Maximum Temperature: Three Hundred Sixty-Six Degrees Fahrenheit (One Hundred Eighty-Six Degrees Celsius)
• Pressure Rating: Six Hundred PSI WOG; One Hundred Fifty PSI WSP
• Ends Configuration: Three-Quarter Inch Female NPT, Three-Quarter Inch Female NPT, Some Ends Match
