Dixon Valve DL275 Double Bolt Clamp

Product Description

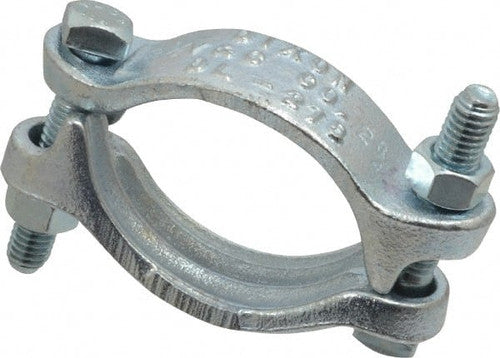

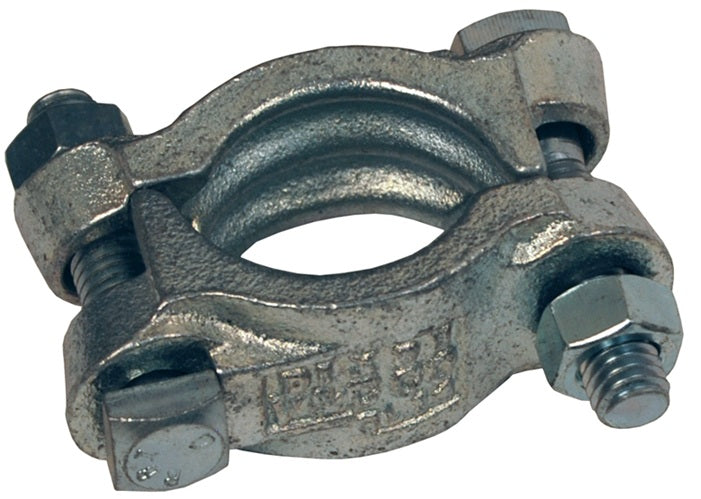

The Dixon Valve DL275 is a robust double bolt clamp designed specifically for connecting hoses efficiently. This clamp can accommodate hose outer diameters ranging from two and thirty-two sixty-forth inches to two and forty-eight sixty-forth inches, or fifty-three point five millimeters to sixty-nine point nine millimeters. It is made from high-quality plated iron, ensuring durability and strength.

• Supports hose OD from two and thirty-two sixty-fourths inches to two and forty-eight sixty-fourths inches.
• Constructed from resilient plated iron.
• Equipped with reinforced bolt lugs to prevent bending.

Product Highlights

This double bolt clamp offers reliable connections for hose applications in various environments.

Product Information

Standard Information

• Material: Plated Iron
• Weight: 1.09 lb

Technical Specifications

• Minimum Outside Diameter Hose: 2-1/2 inches
• Maximum Outside Diameter Hose: 2-3/4 inches
• Minimum Clamp I.D.: 2.50 inches
• Maximum Clamp I.D.: 2.75 inches
• Hose OD From: 2-32/64 (63.5 mm)
• Hose OD To: 2-48/64 (69.9 mm)
• Torque: 40 in ft. lbs.
• UNSPSC Code: 31162900
