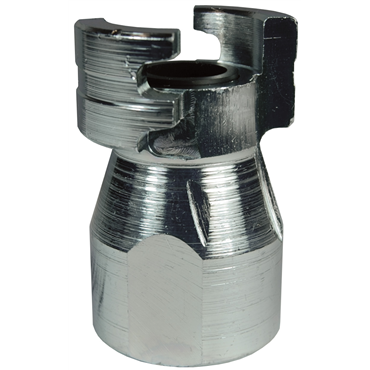

Dixon Valve & Coupling P4F4 Dual Lock Quick-Acting Coupling

Product Description

The Dixon Valve & Coupling P4F4 is a dual lock quick-acting coupling designed for reliable connection and disconnection in air fittings. This coupling features a spring-loaded interlocking engagement, providing secure performance. With a full opening, it allows for maximum flow and pressure to the tool, catering to various tasks in air systems.

• 1/2 Body Size
• 1/2 Female NPT
• Zinc Coated Steel Construction

Product Highlights

Optional locking key prevents sleeve retraction. This design allows interchangeability with National A type, Perfecting P type, and Thor PHC series couplings.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part Number: 101936219

Technical Specifications

• Operating Pressure [Max]: 300.0 psi
• Body Size: 1/2 in
• Connection Size: 1/2
• Body Material: Trivalent Chrome Plated Steel
• Series: Thor Interchange
• Flow (CFM) at p=0.4Bar (6.9 Bar Inlet): 250 ft3/min
• Component: Plug
• Pressure Rating: 300 psi
• Female Thread: 1/2 in NPT
• Connection Type: Female Pipe Thread
• Burst Pressure [Min]: 4,800 psi
• Weight: 0.56 LB
