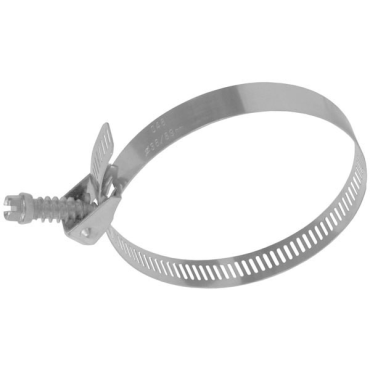

Dixon Valve & Coupling LSS88 LSS Series Quick Release Clamps

Product Description

The Dixon Valve & Coupling LSS88 is part of the LSS Series Quick Release Clamps. This clamp is made of 301 stainless steel. It is designed for hoses with an outside diameter range from two and one-sixteenth inches to six inches.

• Durable 301 stainless steel construction
• Hose O.D. range of 2 1/16 to 6 inches
• Features a worm drive buckle with quick-release

Product Highlights

The clamp provides reliable performance for various industrial applications. It ensures a strong grip and allows for quick connection and disconnection of hoses.

Product Information

Standard Information

• Brand: Dixon Valve & Coupling
• Part Number: 101894638

Technical Specifications

• Housing Material: 310 Stainless Steel
• Band Material: 301 Stainless Steel
• Screw Material: Stainless 410 Series
• Bolt/Screw Material: Stainless Steel 410
• Hose O.D. Range: 2 1/16 to 6 inches
• Type: Band & Worm Drive Buckle
• Band Width: 0.5 inches
• Locking Type: Worm Drive Buckle-Grooved Band with Quick Release
• Torque [Max]: 30 in lb
• Material: 301 Stainless Steel
• Weight: 0.085 lb
