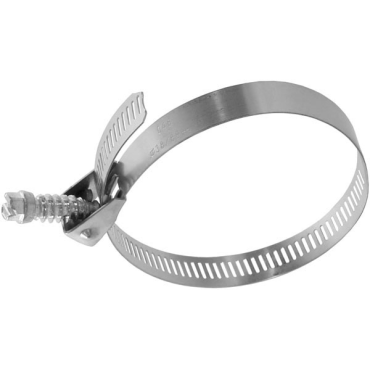

Dixon Valve & Coupling LS152 Quick Release Worm Gear Clamp

Product Description

The Dixon Valve & Coupling LS152 is a quick release worm gear clamp designed for flexible connections. This clamp accommodates hose outer diameters ranging from two to ten inches.

• LS Style Worm Gear Clamp
• Hose O.D. Range: 2 to 10 inches
• Band Width: 0.5 inches

Product Highlights

Provides secure fastening for hoses in various applications. Easy installation and removal facilitate maintenance tasks.

Product Information

Standard Information

• Part #: 101883228
• Availability: Ready To Ship

Technical Specifications

• Style: LS Style
• Hose O.D. Range: 2 to 10 inches
• Band Width: 0.5 inches
• Band Material: 301 Stainless Steel
• Screw Material: Hardened Carbon Steel
• Bolt/Screw Material: Carbon Steel
• Bolt/Screw Size: 5/16 inches
• Bolt/Screw Type: Slotted Hex Head
• Torque: 30 inch-lbs
• Weight: 0.11 lbs
• Housing Material: Stainless 300 Series
